Frame Landings

We produce a range of steel reinforced precast concrete frames, custom slabs are available on request.

These products are manufactured in accordance with BS 8415: 2018 to meet BRAMM and NAMM guidelines. A declaration of performance is available on request.



Frame Landings (Stock items)

Ref No. Size (WxDxT) Weight Band Size (X)
Small Frame
6’8″ x 2’8″ x 3″ 162kg 7″
Medium Frame
6’8″ x 3’2″ x 3″ 175kg 7″
Large Frame
7’2″ x 3’2″ x 3″ 182kg 7″


Chipping Slabs (Stock items)

Ref No. Size (WxDxT) Weight
Small Chipping Slab
34″ x 20″ x ¾” 12kg
Large Chipping Slab
37″ x 25¾” x ¾” 16kg


Two Piece Frame Landings (Stock items)

Ref No. Size (WxDxT) Band Size (X) Weight
Two Piece Small Frame
6’8″ x 2’8″ x 3″ 7″ 162kg or 81kg per half
Two Piece Large Frame
7’2″ x 3’2″ x 3″ 7″ 182kg or 91kg per half

BRAMM recommend supporting the joints between the sections with concrete bearers.

Bespoke design

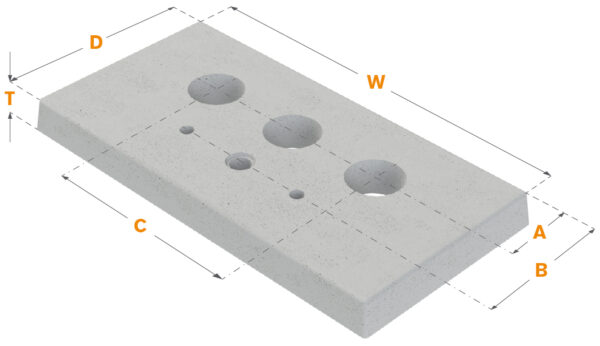

JKH are able to design & manufacture special sizes of foundation slab, frame landing and cremation tablet to order

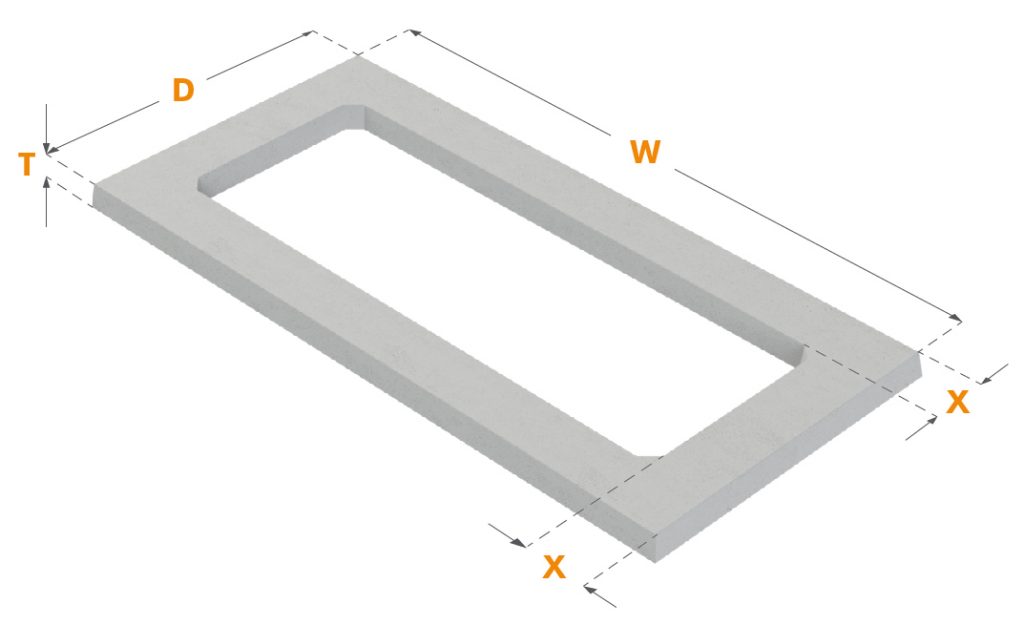

Frame landing

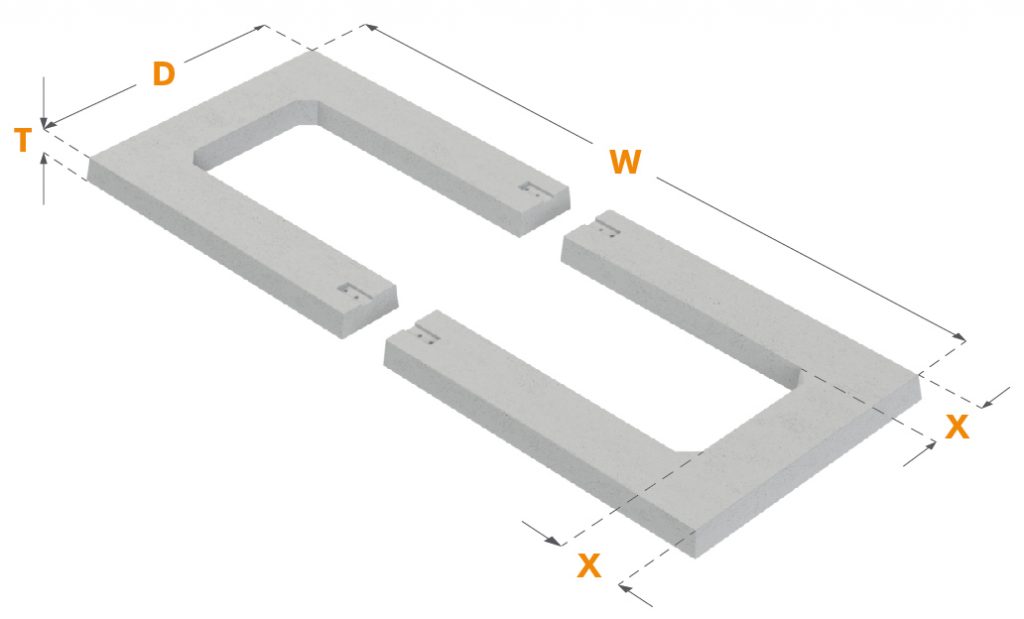

2 piece split frame landing

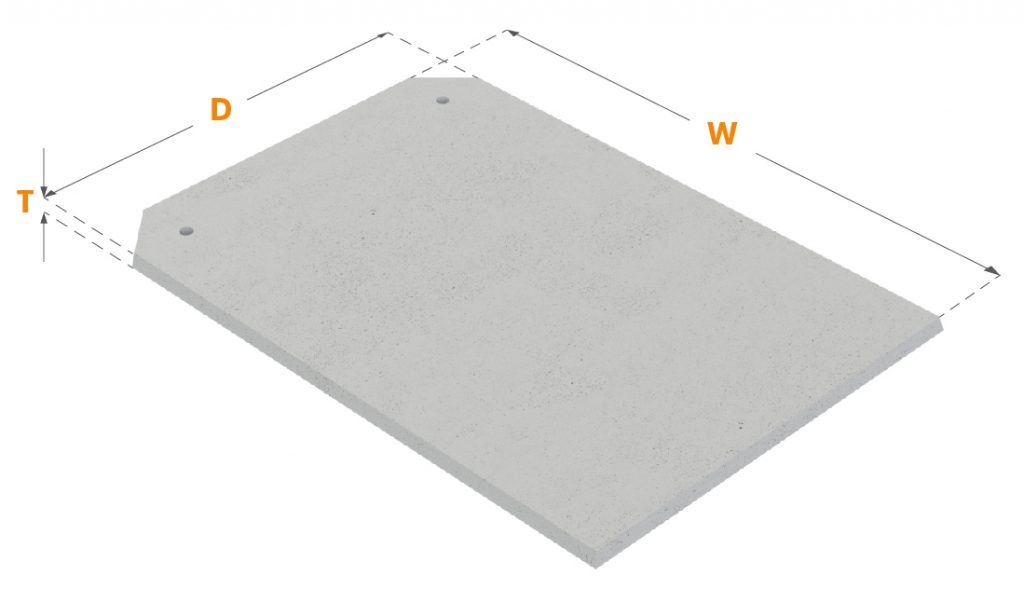

Chipping slap

Additional Information

D Depth of slab / frame

T Thickness of slab / frame

W Width of slab / frame

X Band size

Using our fully equipped design office and engineering workshop JKH are able to offer CE Marked metal fabrication design and manufacturing services.

All prices are subject to V.A.T. at the prevailing rate.
All sizes are approximate.

All frame landing prices and weights are based on 3" thick slabs.

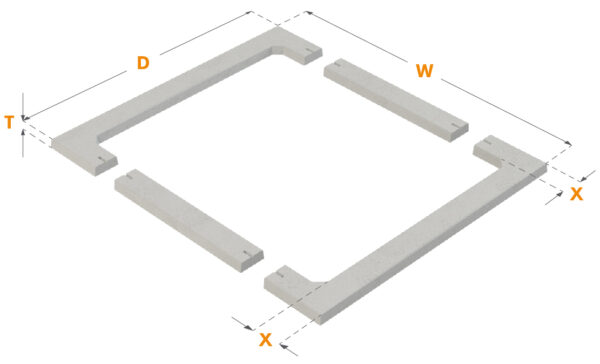

Other sizes are available, please enquire for more information.
