XR Range: 100‑Year Design Life Headwalls.
Engineered for extreme durability. Designed for long‑term performance.
The XR Range is an enhanced evolution of our established precast concrete headwall systems, developed for applications requiring an extended 100-year design life. Building on decades of precast expertise and the proven performance of our existing ranges, the XR Range represents a strengthened upgrade to conventional 50-year products. By increasing the wall thickness from 100 mm to 150 mm, it delivers improved structural strength, durability, and long-term resilience, ensuring greater performance over an extended lifespan.
products

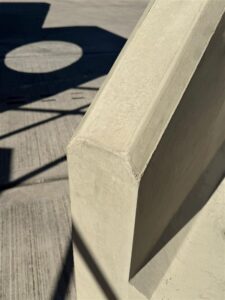

Engineered for the Next Century: Thicker 150 mm wall construction
The XR Range has been structurally enhanced to deliver superior resistance to hydraulic forces, erosion, freeze‑thaw cycling and long‑term environmental exposure. This upgrade is particularly important for installations where access for future maintenance may be challenging or where infrastructure is expected to operate with minimal intervention. Built for high‑exposure applications, the XR Range is ideally suited for:
- Highway drainage and major infrastructure schemes
- Energy and industrial outfalls
- Large‑scale SuDS systems
- Remote or sensitive sites with long service life requirements

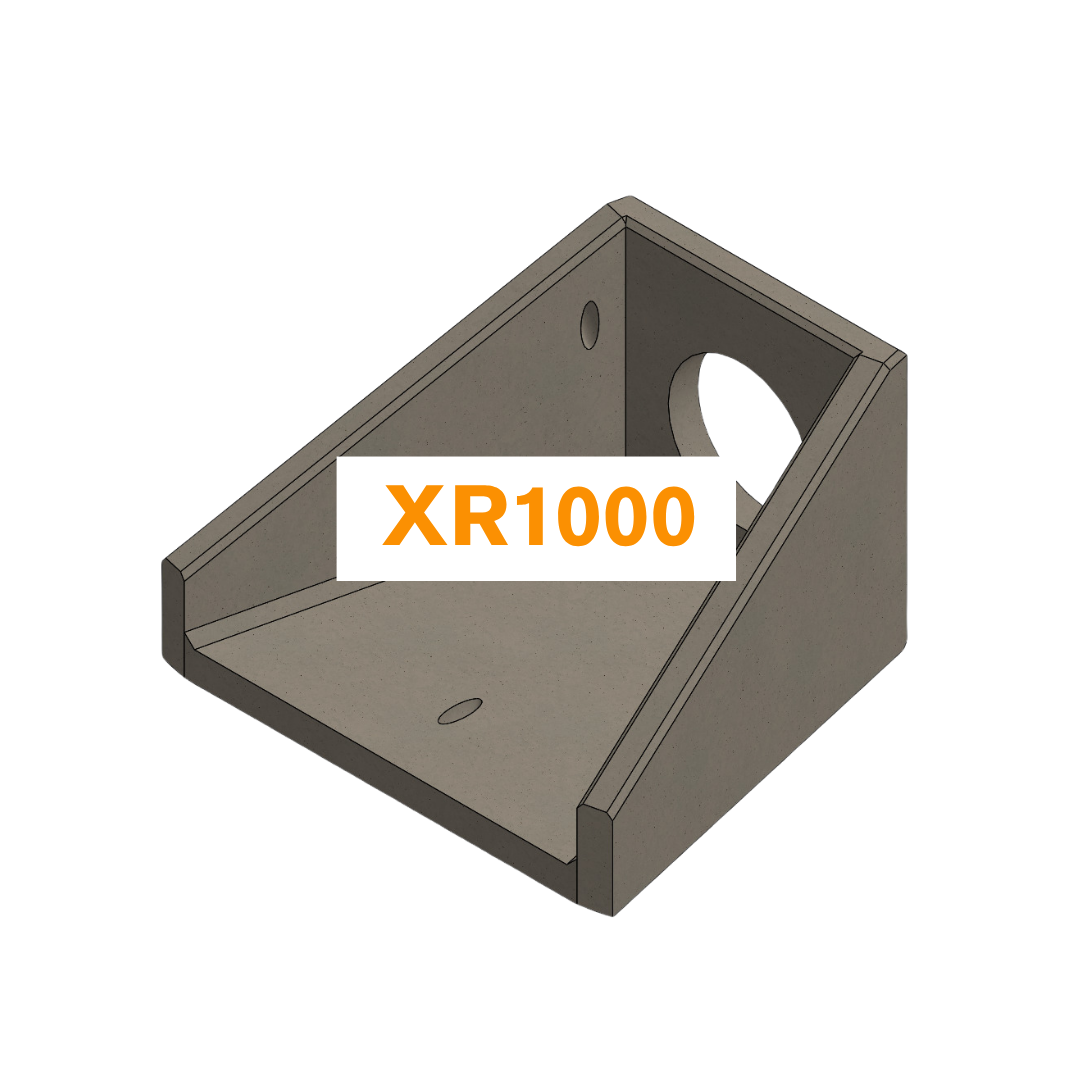

xr1000 – Key Features.
- Design Life: 100 Years
- Standardised Bolt‑On Toe Options
- Compatible with JKH’s Full Accessory Suite
- Wall thickness: 150mm
- Backwall Width: 1150mm
- Backwall Height: A: 1300B: 1700C: 2180
Download Resource

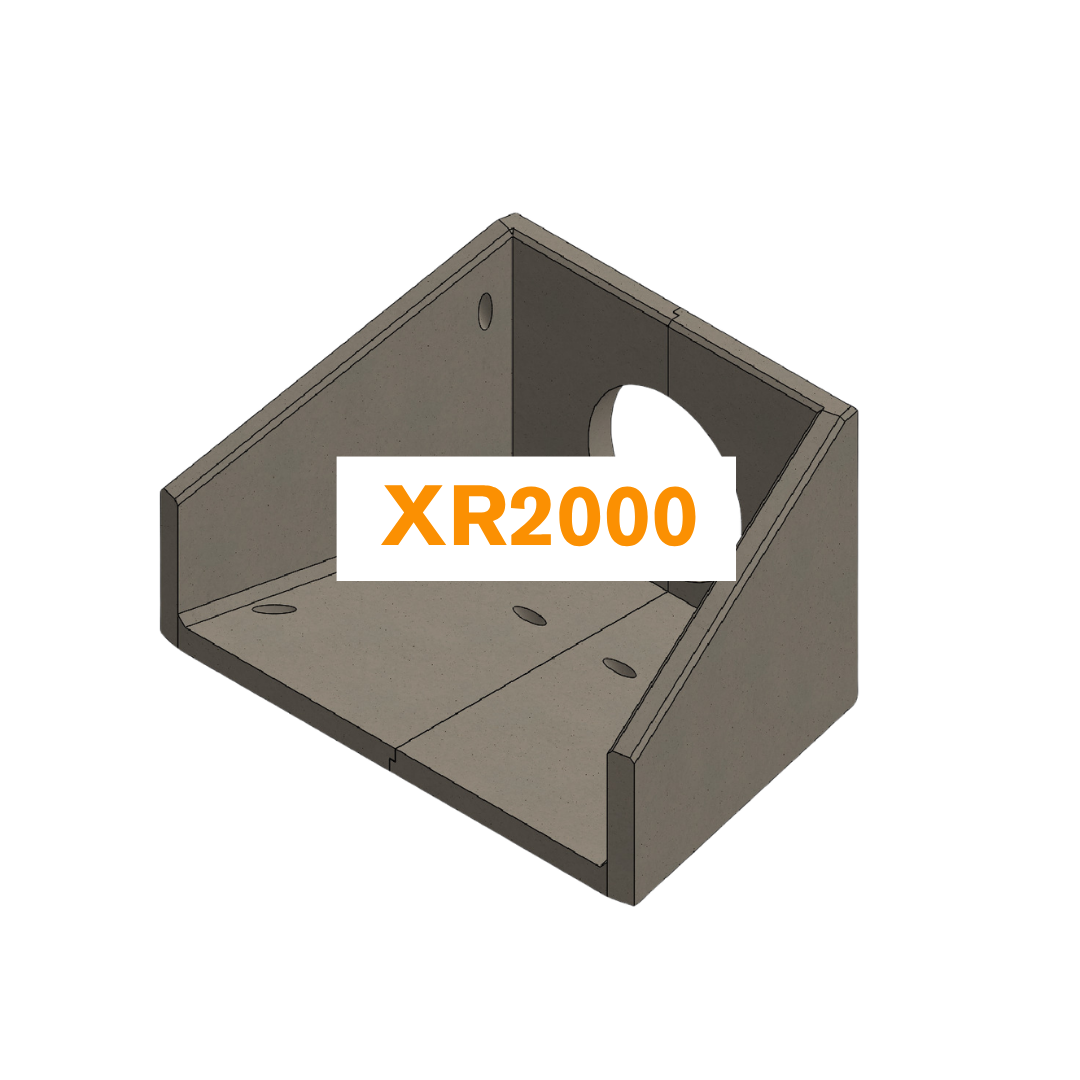

xr2000- Key Features.
- Design Life: 100 Years
- Standardised Bolt‑On Toe Options
- Compatible with JKH’s Full Accessory Suite
- Wall thickness: 150mm
- Backwall Width: 2026mm
- Backwall Height:A: 1300B: 1700C: 2180
Download Resource

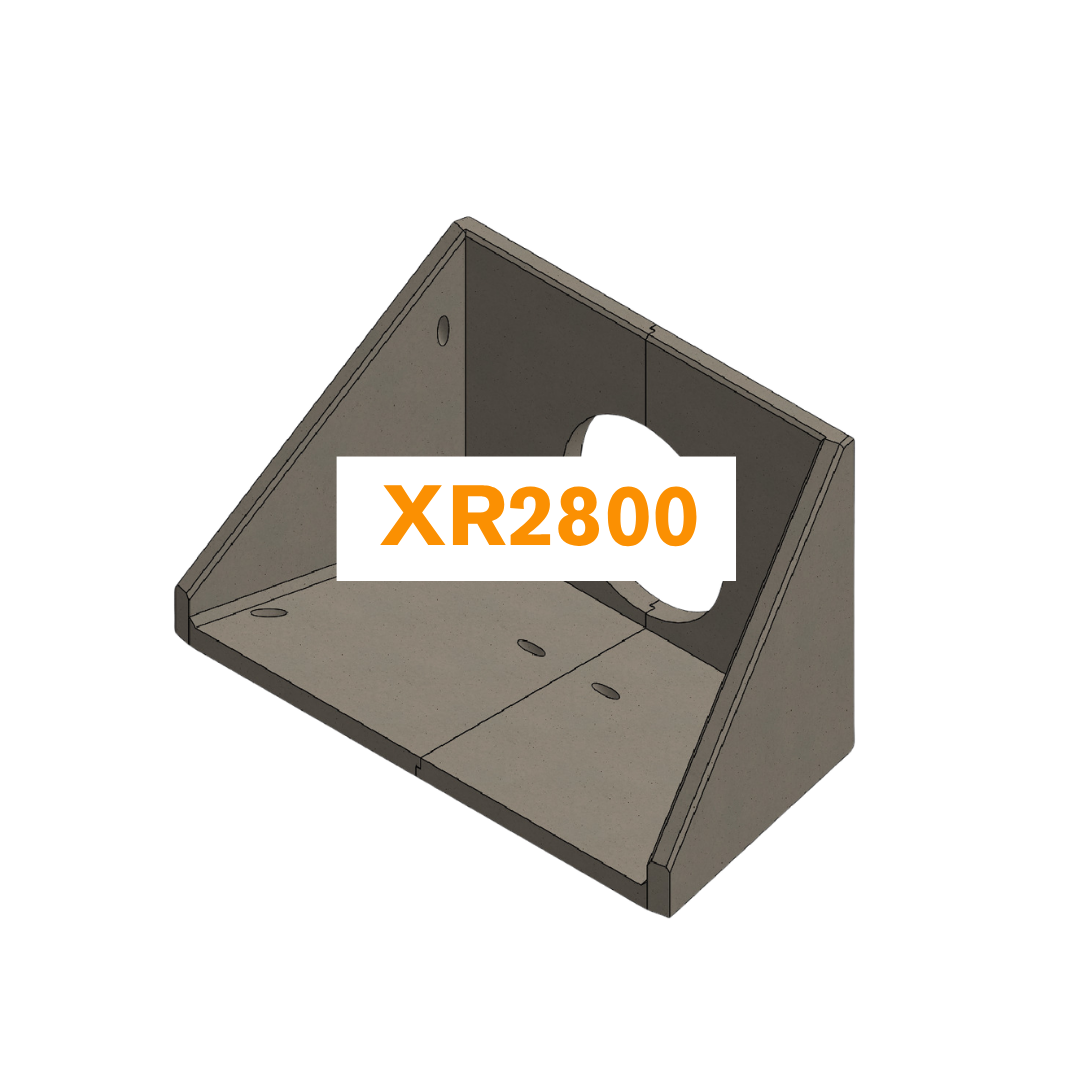

xr2800 – Key Features.
- Design Life: 100 Years
- Standardised Bolt‑On Toe Options
- Compatible with JKH’s Full Accessory Suite
- Wall thickness: 150mm
- Backwall Width: 2856mm
- Backwall Height:A: 1300B: 1700C: 2180
Download Resource
Key Features.
- Standardised Bolt‑On Toe Options: To maximise versatility and simplify specification, the XR Range introduces a new standardised suite of bolt‑on toes. These offer additional stability, improved scour protection and easier adaptation to different site conditions.
- Precision Precast Manufacturing: Produced in controlled factory conditions using steel moulds for dimensional accuracy, consistency and quality.
- Compatible with JKH’s Full Accessory Suite: XR headwalls can be factory‑fitted with the same accessories offered across JKH’s standard ranges: Flap valves/Penstocks/Handrails/Gratings and outfall protection
- Sustainable ECO 1 Concrete Mix: The XR range uses our ECO 1 low‑carbon concrete mix, achieving 12–49% CO₂ reduction vs traditional mixes.
- Aesthetic Integration with 24 Colour Options: Where landscapes demand sensitivity, the XR Range is available in JKH’s coloured concrete options, offering uniform colouration in up to 24 finishes
- Compatible with JKH’s Full Accessory Suite: XR headwalls can be factory‑fitted with the same accessories offered across JKH’s standard ranges: Flap valves/Penstocks/Handrails/Gratings and outfall protection
